Spring-loaded AC-AC precision with reliable connector integration.

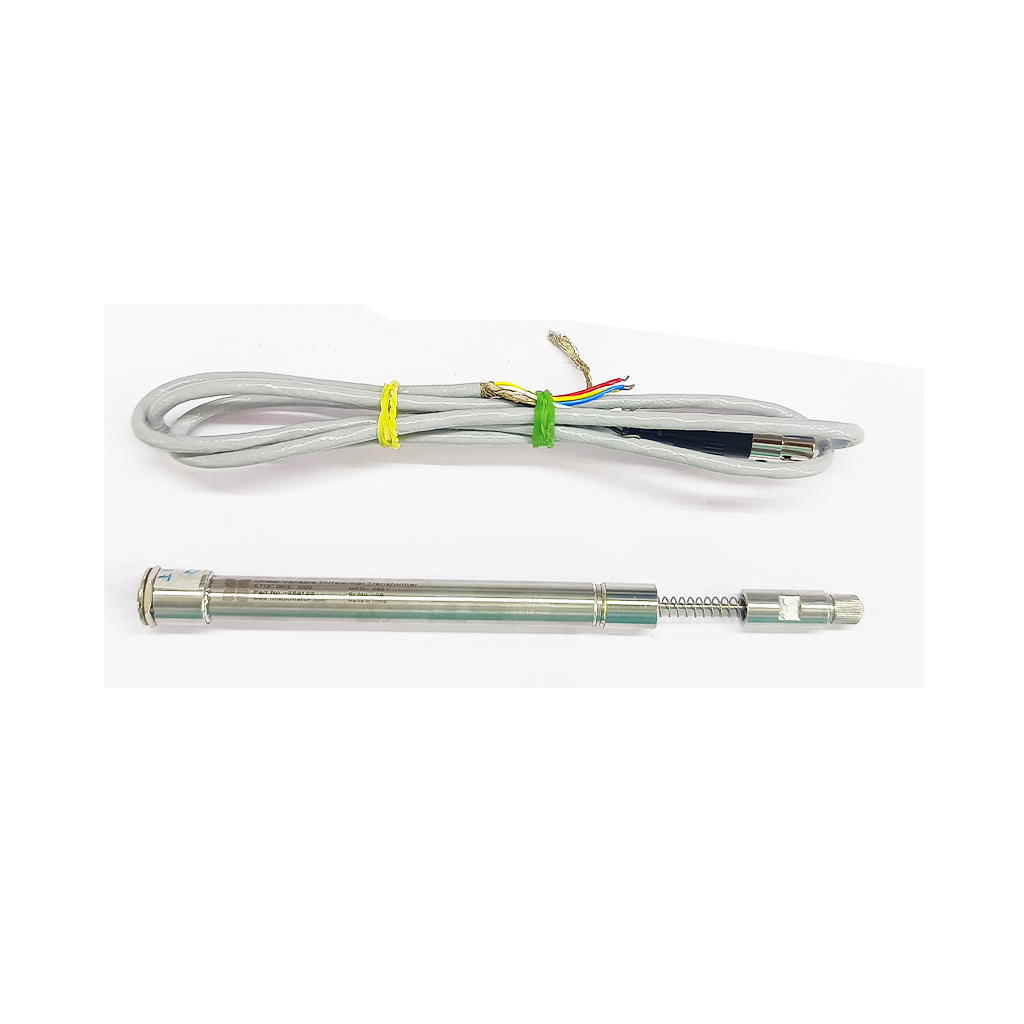

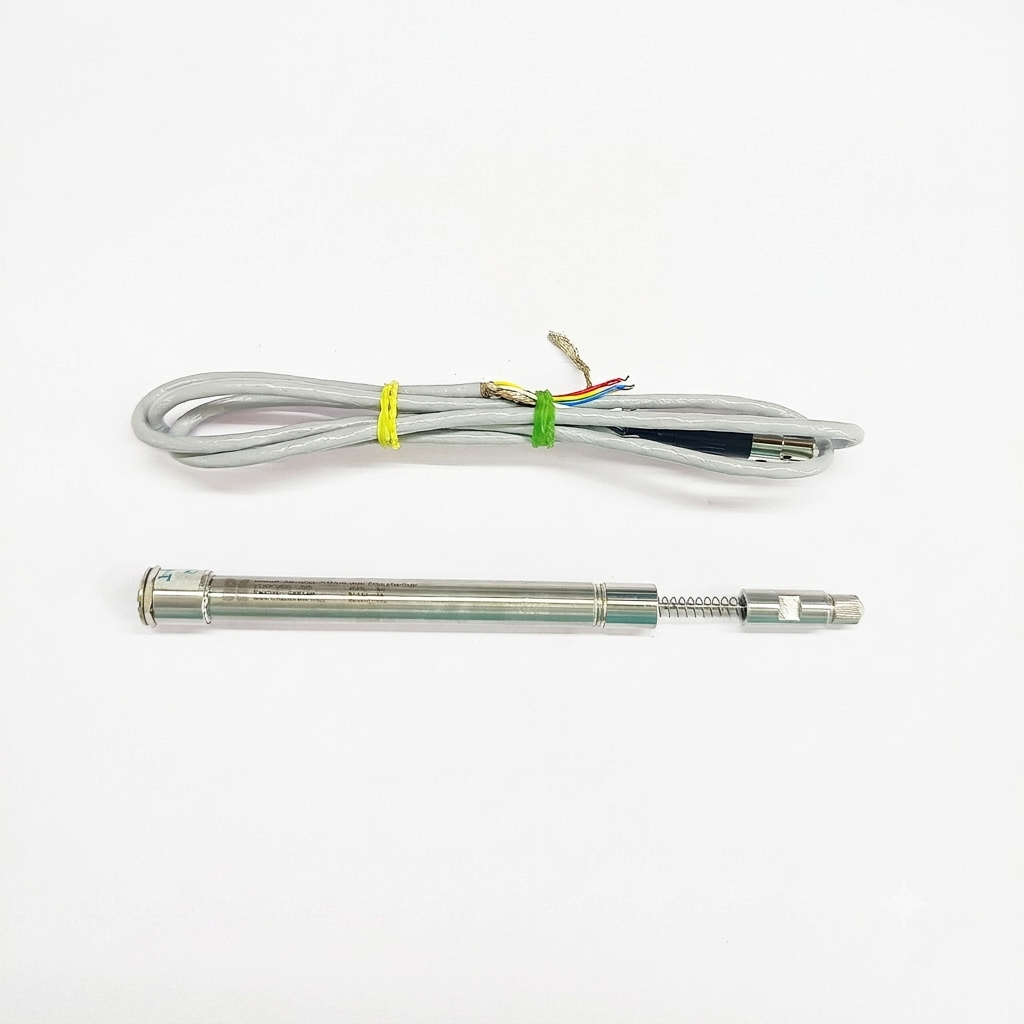

The ILT12C SR-E series by Uni-Automation is a high-precision AC/AC LVDT designed for industrial measurement and testing applications. It features an external spring-loaded mechanism combined with a connector-based interface for easy plug-and-play installation.
Using contactless electromagnetic sensing, it ensures smooth, continuous position feedback with infinite resolution and long operational life. The sensor is engineered for stable performance in demanding environments.
With stroke options from ±1 mm to ±10 mm and rugged IP65 protection, it delivers consistent accuracy and durability in automation and precision measurement systems.
Detailed electrical, mechanical and environmental parameters for the ILT12C SR-E (Variants: S002, S004, S010, S020).
| Parameter | Value / Rating |
|---|---|
| Input Voltage (Primary) | 3 Vrms |
| Primary Excitation Frequency | 3000 Hz |
| Linearity | < ±0.5% F.S. |
| Thermal Drift | < 500 ppm/°C |
| Null Voltage | < 15 mVrms |
| Insulation Resistance | > 50 MΩ @ 500 VDC |
| Electrical Stroke | ±1 mm ±2 mm ±5 mm ±10 mm |
| Mechanical Stroke | ±1.5 mm ±3 mm ±7 mm ±12 mm |
