Frictionless AC-AC precision displacement with plug-and-play connector integration.

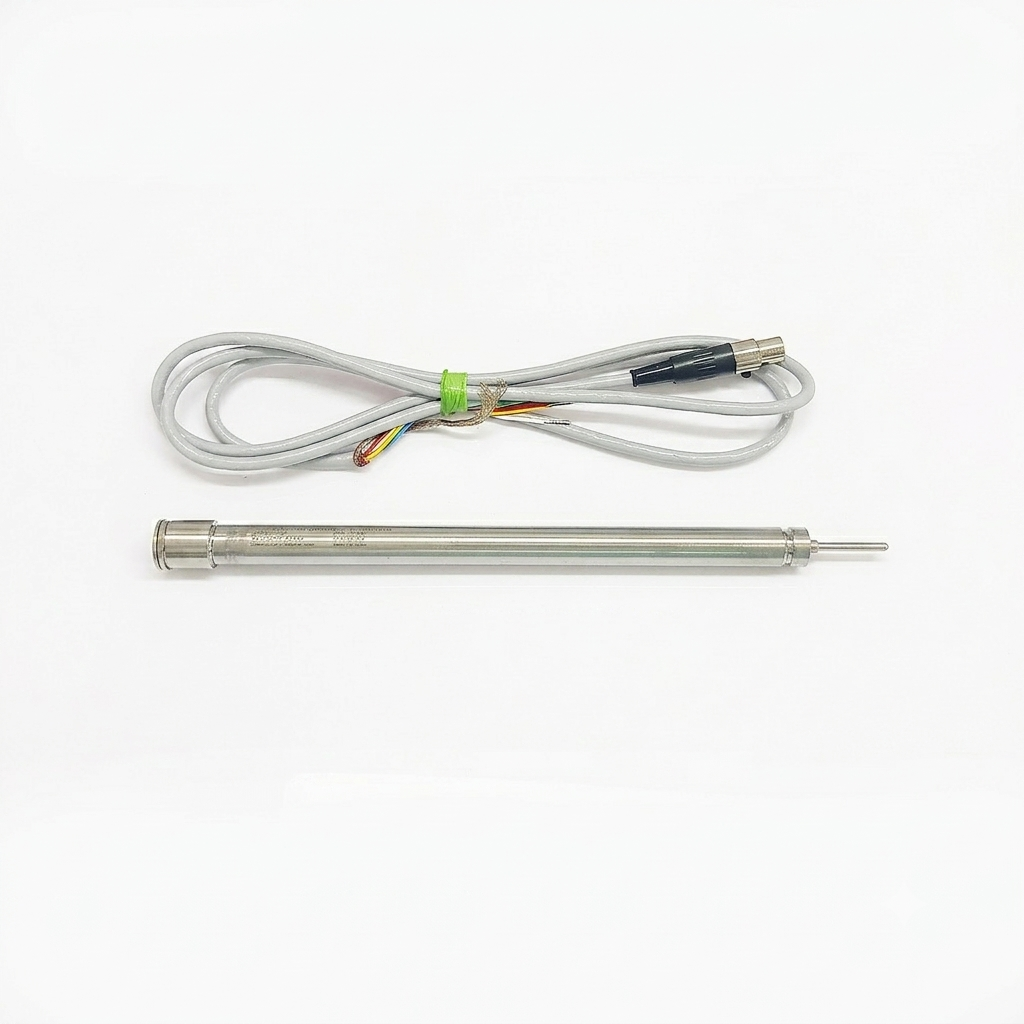

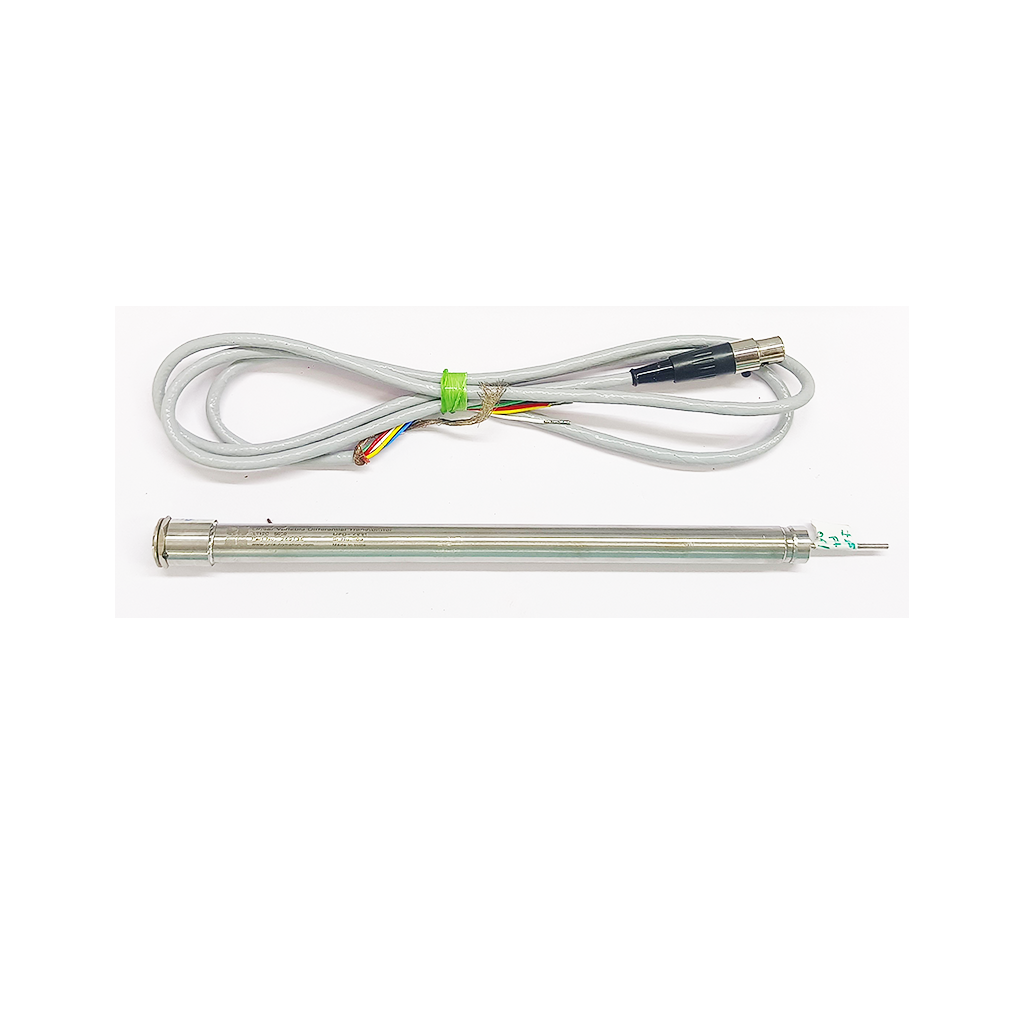

The ILT12C series by Uni-Automation is a high-performance AC/AC LVDT designed for precise linear displacement measurement. It features a connector-based design and operates without an internal spring mechanism, ensuring frictionless, wear-free operation. With external core coupling and stroke options from ±1 mm to ±25 mm, it delivers stable and accurate output in industrial environments.
Detailed electrical, mechanical and environmental parameters for the ILT12C (Variants: S002, S004, S010, S020, S032, S050).
| Parameter | Value / Rating |
|---|---|
| Input Voltage (Primary) | 3 Vrms |
| Primary Excitation Frequency | 3000 Hz |
| Linearity Error | < ±0.5% F.S. |
| Thermal Drift Coefficient | < 500 ppm/°C |
| Null Voltage Residual | < 15 mVrms |
| Insulation Resistance | > 50 MΩ @ 500 VDC |
| IP Enclosure Rating | IP65 (available up to IP69K) |
| Electrical Stroke | ±1 mm ,±2 mm, ±5 mm, ±10 mm, ±16 mm ,±25 mm |
| Mechanical Stroke | ±1.5 mm, ±3 mm, ±7 mm ,±12 mm, ±18 mm, ±27 mm |
