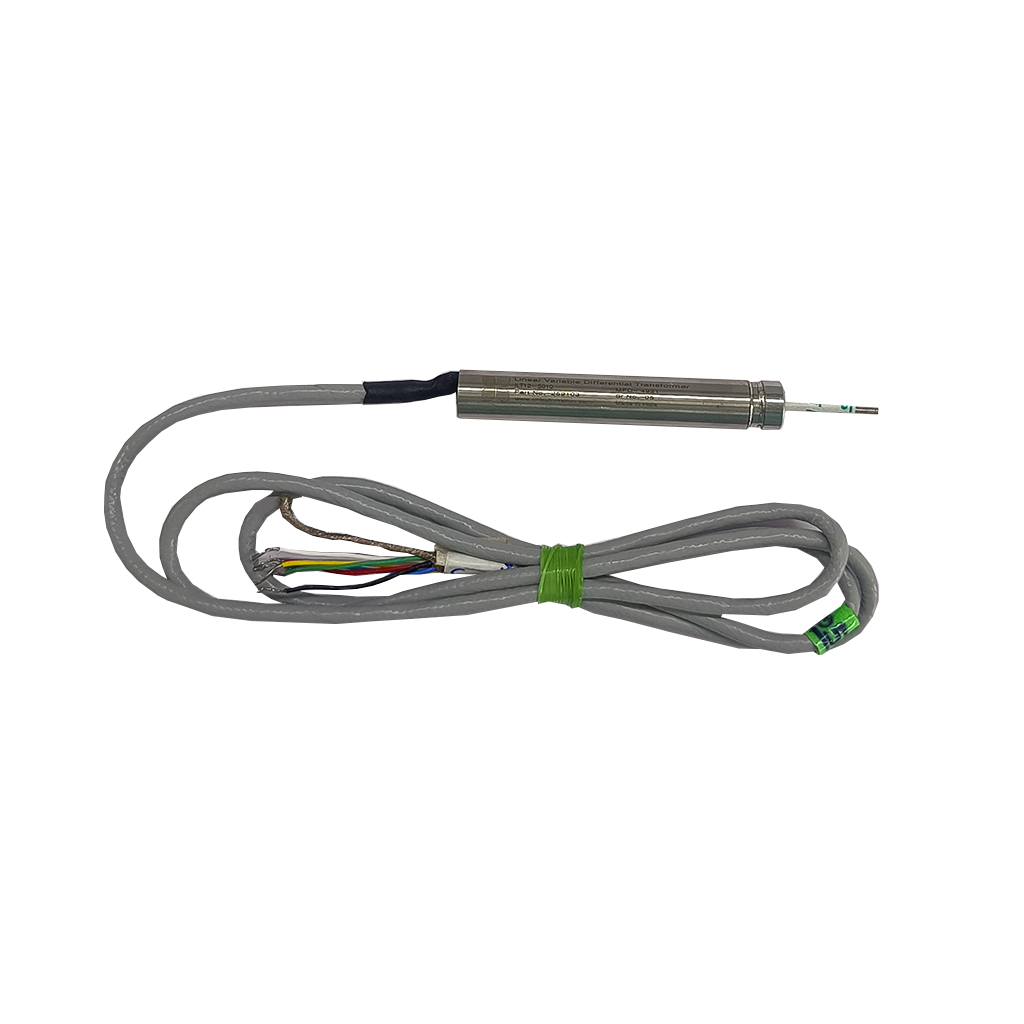

Contactless high-precision linear displacement measurement.
Detailed electrical, mechanical and environmental parameters for the ILT12 (Variants: S002, S004, S010, S020, S032, S050).
| Parameter | Value / Rating |
|---|---|
| Input Voltage(Primary) | 3 Vrms |
| Primary Excitation Frequency | 3000 Hz |
| Linearity | < ±0.5% F.S. |
| Thermal Drift | < 500 ppm/°C |
| Null Voltage | < 15 mVrms |
| Insulation Resistance | > 50 MΩ @ 500 VDC |
| IP Protection | IP65 (available up to IP69K) |
| Electrical Stroke | ±1 mm ±2 mm ±5 mm ±10 mm ±16 mm ±25 mm |
| Mechanical Stroke | ±1.5 mm ±3 mm ±7 mm ±12 mm ±18 mm ±27 mm |
| Primary Resistance | 24 Ω 50 Ω 80 Ω 115 Ω 150 Ω 195 Ω |
| Secondary Resistance | <200 Ω <250 Ω <100 Ω <210 Ω <250 Ω <300 Ω |
