Precision contactless tracking with dual-redundant Hall output architecture.

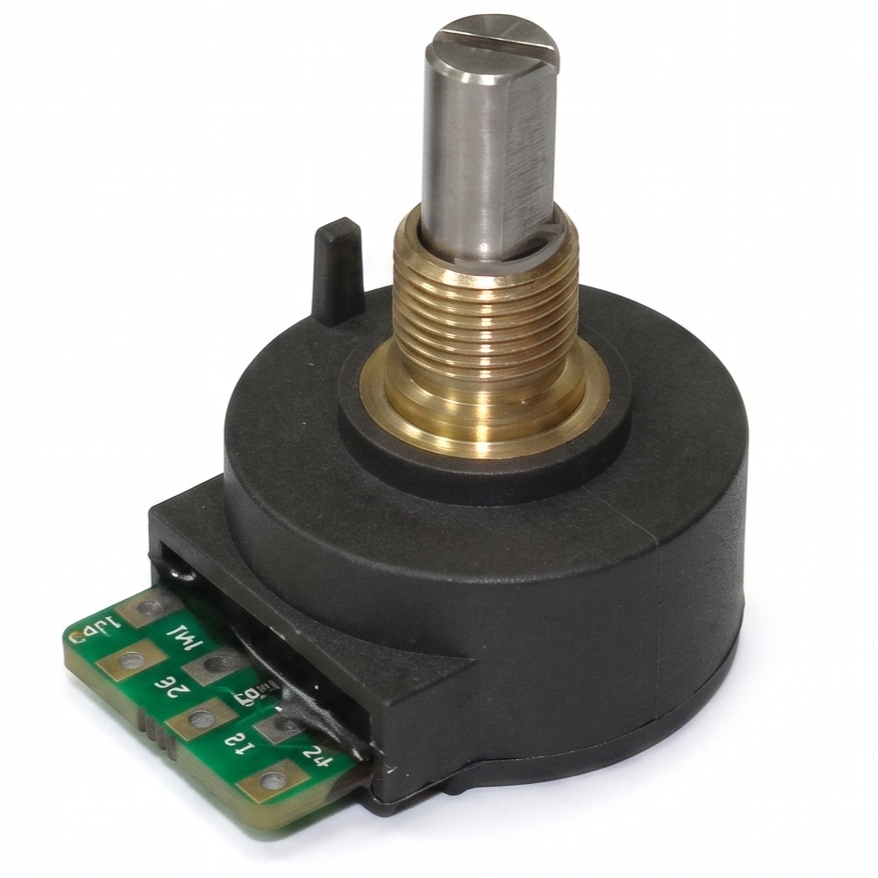

The CL27 (052) is a rugged contactless position sensor based on Hall Effect technology, designed for precise angular measurement over a 270° range. It features dual redundant analog outputs for enhanced safety and signal reliability.
Built with an IP65-rated engineering plastic housing, stainless steel shaft, and gold-plated terminals, it ensures stable operation in harsh industrial environments. The sensor includes a 4-pin Molex connector for easy integration.
Detailed electrical, mechanical and environmental parameters for the CL27 (052).
| Parameter | Value / Rating |
|---|---|
| Electrical Travel | 270° |
| Operating Voltage | Dual redundant analog (10–90% / 90–10%) |
| Linearity | ±1% FS |
| Output Resolution | 0.025% of Vdd |
| Supply Current | 24 mA |
| Load Resistance | 4.7 kΩ min / 10 kΩ typical |
| Insulation / Dielectric | 1000 MΩ / 750 VDC |
| Mechanical Travel | 270° |
| Protection Class | IP65 |
| Operating Temperature | -40°C to +85°C |
| Connector Type | Molex 26571-1004 (4-pin female) |
| Mounting | 3/8"-32 UNEF-2A bushing |
