Infinite resolution linear tracking built for continuous performance.

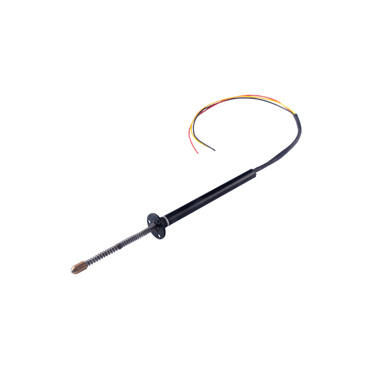

The WT10 is a rugged conductive plastic linear motion potentiometer from Uni-Automation designed for precise displacement sensing in industrial systems. It features a durable anodized aluminum housing with a stainless steel shaft, ensuring reliable performance in demanding environments. With a 50 mm electrical stroke and long service life of up to 100,000 cycles, it delivers consistent and accurate analog position feedback.
Detailed electrical, mechanical and environmental parameters for the WT10 (618).
| Parameter | Value / Rating |
|---|---|
| Resistance Value | 10K Ω |
| Resistance Tolerance | ±30% |
| Independent Linearity | ±0.5% |
| Dielectric Strength | 500 V AC (1 min) |
| Insulation Resistance | 100 MΩ @ 250 VDC |
| Temperature Coefficient (TCR) | +400 ppm/°C |
| Bearing Type | Sleeve |
| Mechanical Stroke | 55 ±5 mm |
| Electrical Stroke | 50 ±3 mm |
| Operating Temperature | -40°C to +105°C |
