High-precision linear sensing built for exceptional endurance.

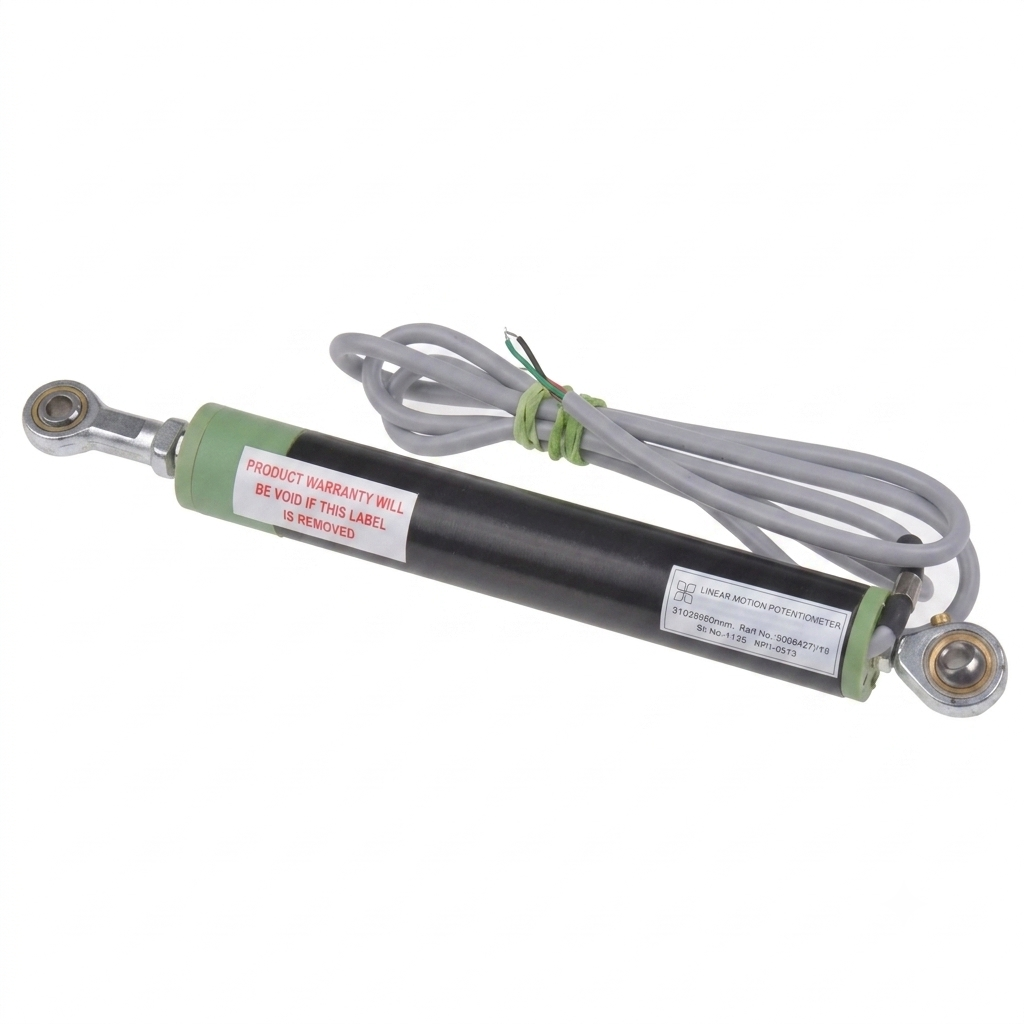

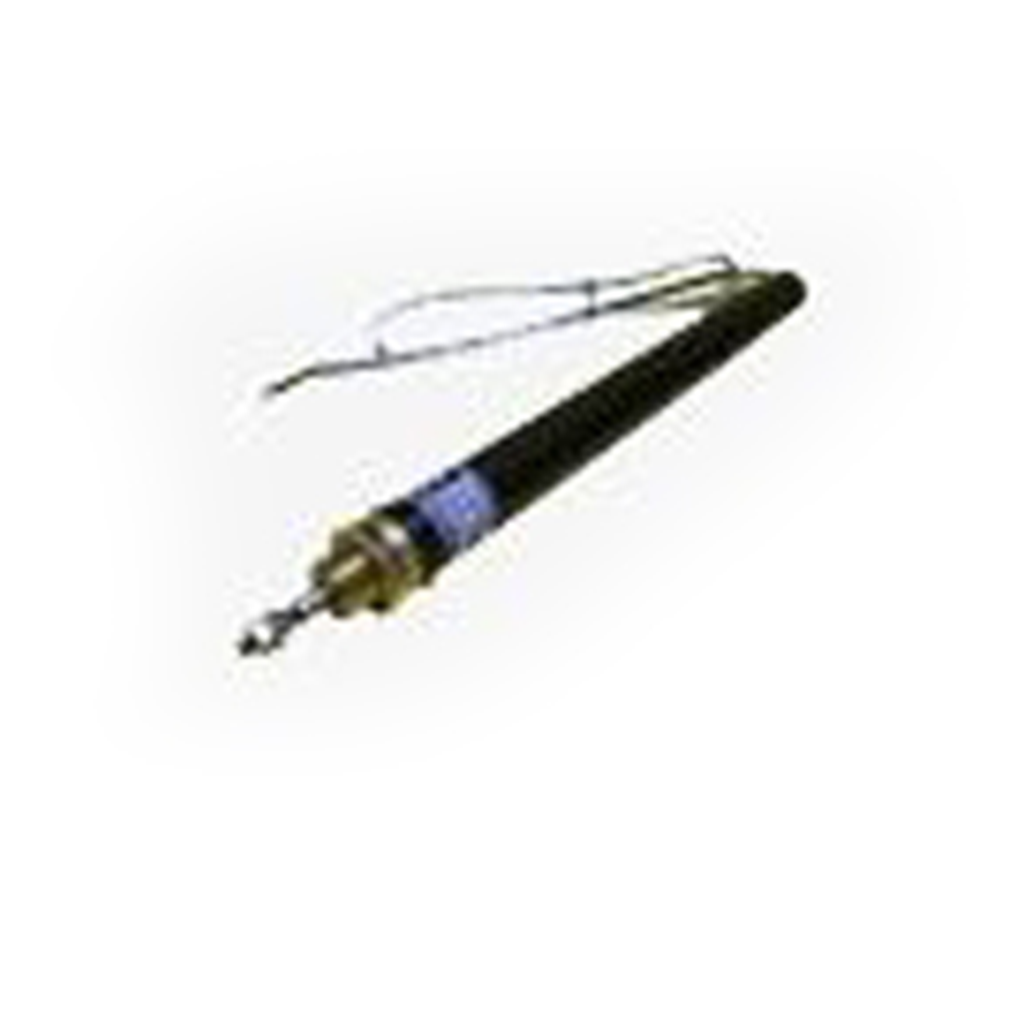

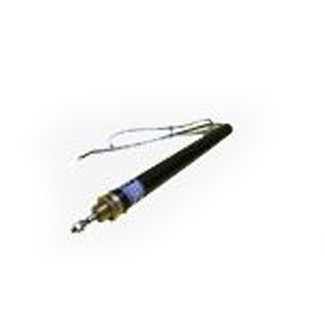

The WT22 is a high-performance conductive plastic linear motion potentiometer designed for accurate and continuous displacement tracking in industrial applications. It offers infinite resolution and low-noise output for highly stable signal feedback. Built with a rugged anodized aluminum body and stainless steel shaft, it is engineered for long-term reliability in harsh environments.
Detailed electrical, mechanical and environmental parameters for the WT22 (601).
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive plastic |
| Resistance Tolerance | ±30% |
| Independent Linearity | ±0.5% |
| Resolution | Essentially infinite |
| Operating Temperature | -40°C to +105°C |
| Stroke Length | 75 mm |
| Electrical Stroke | 75 mm ±5 mm |
| Mechanical Stroke | 80 mm ±5 mm |
| Body Length (A) | 166 mm ±1 mm |
| REB Center-to-Center (B) | 216 mm ±1 mm |
| Body Diameter (D) | Ø22 mm ±0.2 mm |
