Precision linear tracking engineered for high-durability performance.

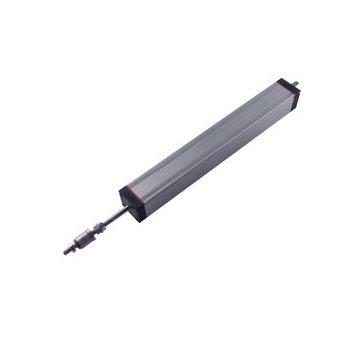

The UNILIN 33 (760) is a conductive plastic linear motion potentiometer designed for accurate displacement measurement and position feedback. With excellent repeatability, high linearity, and a robust IP65-rated construction, it delivers dependable performance in demanding industrial environments.
Detailed electrical, mechanical and environmental parameters for the UNILIN 33 (760).
| Parameter | Value / Rating |
|---|---|
| Electrical Stroke (Useful) | 50 mm to 900 mm |
| Nominal Resistance | 3 kΩ to 15 kΩ |
| Resistance Tolerance | ±20% |
| Independent Linearity (Typical)0 | ±0.05% |
| Recommended Wiper Current | < 1 mA |
| Maximum Wiper Current | 10 mA |
| Maximum Applied Voltage | 24 VDC |
| Insulation Resistance | 500 MΩ @ 500 VDC |
| Shock Resistance | 50 g |
| Operational Life | 25 × 10⁶ movements |
| Temperature Range | -40°C to +125°C |
| Repeatability | 0.01 mm |
