Ultra-compact linear precision with spring-return reliability.

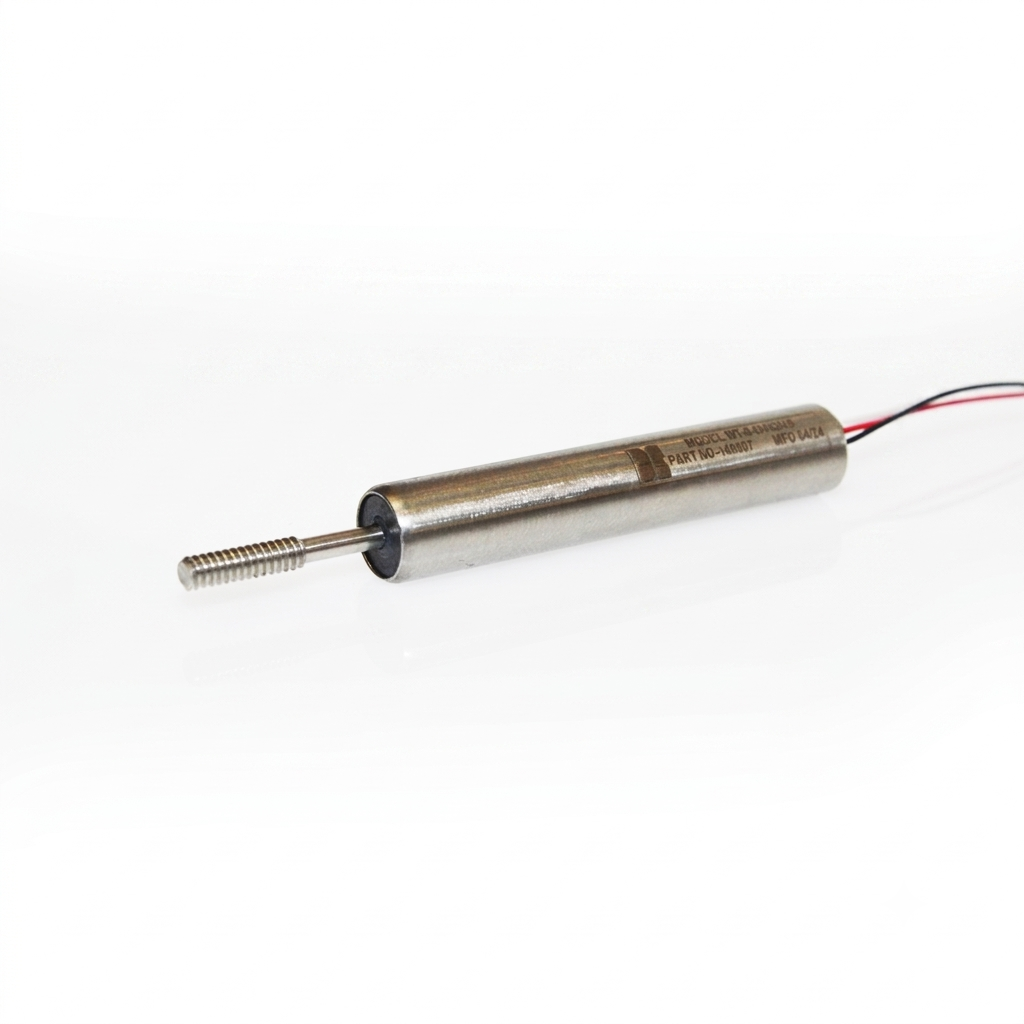

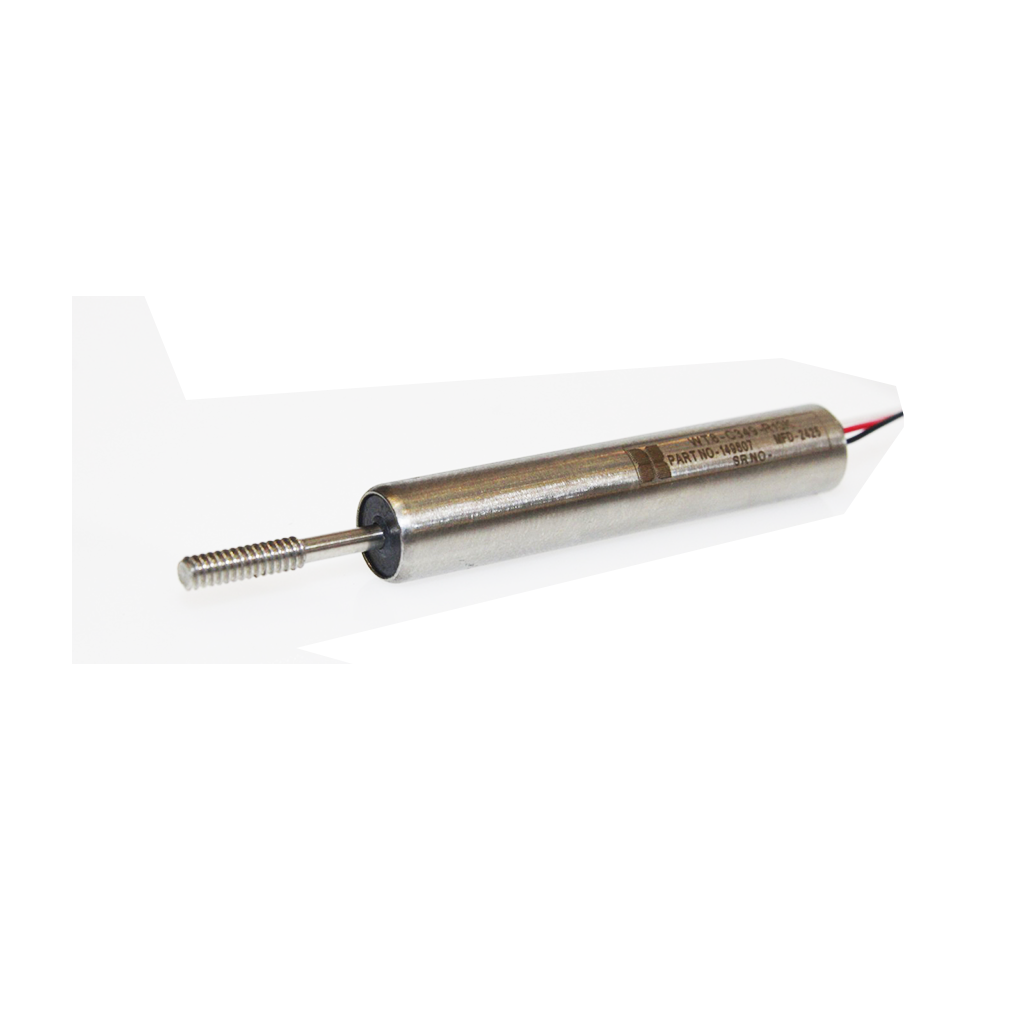

The WT8 is a sub-miniature conductive plastic linear motion potentiometer engineered for accurate position sensing where space is limited. Featuring a spring-return mechanism, stainless steel construction, and essentially infinite resolution, it delivers reliable performance, long operational life, and excellent stability across demanding industrial environments.
Detailed electrical, mechanical and environmental parameters for the WT8.
| Parameter | Value / Rating |
|---|---|
| Resistance Value | 10 kΩ |
| Effective Electrical Stroke | 25.4 mm (1") |
| Resolution | Essentially Infinite |
| Power Rating | 1 W @ 70°C (derated to 0 W @ 125°C) |
| Temperature Coefficient (TCR) | ±400 ppm/°C |
| Short Time Wiper Current | 10 mA (10 sec) |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Dielectric Strength | 500 VAC for 1 Minute |
| End Voltage | < 0.5% of Applied Voltage |
| Mechanical Stroke | 27.178 ± 0.508 mm |
| Shock Resistance | 50 G (MIL-STD-202 Method 213) |
| Operating Temperature | -40°C to +105°C |
