Versatile hollow shaft tracking with customizable connection options.

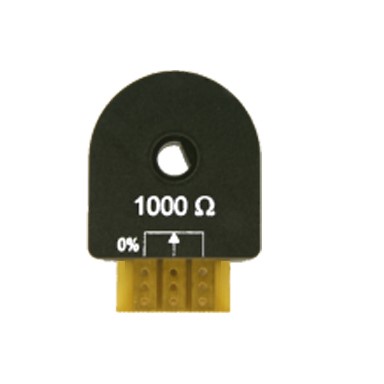

The HWL 60 is a smooth-running hollow shaft potentiometer engineered for direct integration onto rotating drive shafts, enabling accurate and stable angle sensing in compact mechanical systems. Its single-turn design with continuous 360° mechanical rotation ensures consistent feedback across a wide range of motion-control applications.
Built for adaptability, the HWL 60 supports multiple wiring configurations including custom connectors, flat cables, and varied wire lengths, making it suitable for diverse installation requirements. With a durable construction and long operational life, it is well-suited for industrial automation and feedback systems requiring reliable performance.
Detailed electrical, mechanical and environmental parameters for the HWL 60.
| Parameter | Value / Rating |
|---|---|
| Resistance Range | 1 kΩ, 5 kΩ, 10 kΩ |
| Electrical Angle | 45° – 340° |
| Mechanical Angle | 360° continuous rotation |
| Linearity | ±1% |
| Rotational Life | 5,000,000 cycles |
| Connection Options | Wires, flat cables, or standard connectors |
