Smooth, noise-free single-axis precision engineered for rugged operations.

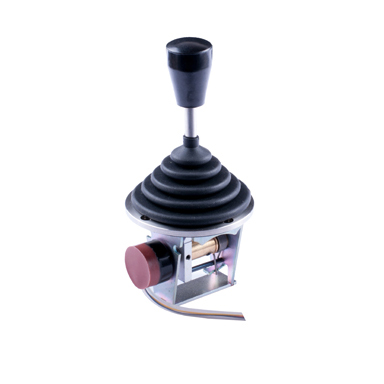

The J-101 (003) is a robust single-axis joystick controller designed for demanding industrial control applications. Featuring a conductive plastic resistance element, precious metal wiper, and precision-machined anodized aluminum housing, it delivers smooth, noise-free operation with exceptional durability. Its rugged construction and long service life make it ideal for reliable manual control systems.
Detailed electrical, mechanical and environmental parameters for the J-101 (003).
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive Plastic |
| Resistance Range | 5 kΩ |
| Resistance Tolerance | ±20% |
| Independent Linearity | ±2.0% |
| Electrical Angle | 45° ±5° |
| Power Rating | 1.0 W @ 70°C0 |
| Insulation Resistance0 | 1000 MΩ @ 500 VDC |
| Short-Time Wiper Current | 10 mA for 10 Seconds |
| Stick Movement Range | 25° - 0 - 25° |
| Panel Cut-Out | 25.5 mm × 25.5 mm |
| Terminal Type | 7/38 Multi-Strand Teflon Wire (4 Wires) |
| Shaft Material | Stainless Steel |
