Precise, noise-free dual-axis tracking built for demanding industrial control.

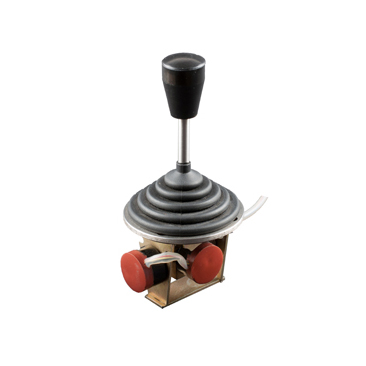

The J-102 (001) is a high-reliability two-axis joystick controller engineered for precise multi-directional positioning in industrial applications. It uses conductive plastic resistance elements and precious metal wipers to ensure smooth, noise-free output across both axes. Built with a precision-machined anodized aluminum housing, stainless steel shaft, and protective nitrile rubber boot, it is designed for dependable operation in harsh environments with long service life.
Detailed electrical, mechanical and environmental parameters for the J-102 (001).
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive Plastic |
| Resistance Range | 5 kΩ |
| Resistance Tolerance | ±20% (±10% best case) |
| Independent Linearity | ±2.0% |
| Electrical Angle | 45° ±5° (both axes) |
| Power Rating | 1.0 W @ 70°C |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Stick Movement Range | 25° - 0 - 25° |
| Operating Temperature | -40°C to +105°C |
| Wire Length | 300 mm ±10 mm |
| Panel Cut-Out | 25.5 mm × 25.5 mm |
| RoHS Compliance | Yes |
| Terminal Leads | 7/38 multi-strand Teflon wire (4 wires) |
