Ultra-precise 5-turn control built for long-term stability and accuracy.

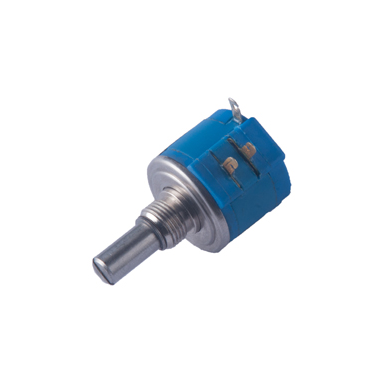

The NHP22 (5 Turn) is an industrial-grade wire-wound potentiometer designed for fine adjustment and precision feedback applications. Its Capri Blue housing, stainless steel shaft, and gold-plated brass terminals ensure durability and reliable electrical performance.
It provides an extended 1800° rotation range with high linear accuracy, making it suitable for demanding calibration and control systems.
Detailed electrical, mechanical and environmental parameters for the NHP22.
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Wire Wound |
| Total Resistance | 500Ω, 1kΩ, 2kΩ, 5kΩ, 10kΩ |
| Resistance Tolerance | ±10% |
| Independent Linearity | ±0.25% (IEC 60393) |
| Effective Electrical Angle | 1800° (+10° / -0°) |
| Power Rating @ 70°C | 2 Watts |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Mechanical Rotation | 1800° (+10° / -0°) with end stop |
| Operating Temperature | -40°C to +125°C |
| Stopper Strength | 45 N·cm (63.725 oz·in) |
| Bushing / Shaft | Ø10.32 mm bushing / Ø6.35 mm shaft |
