Dual-track precision position feedback with an IP65 shield.

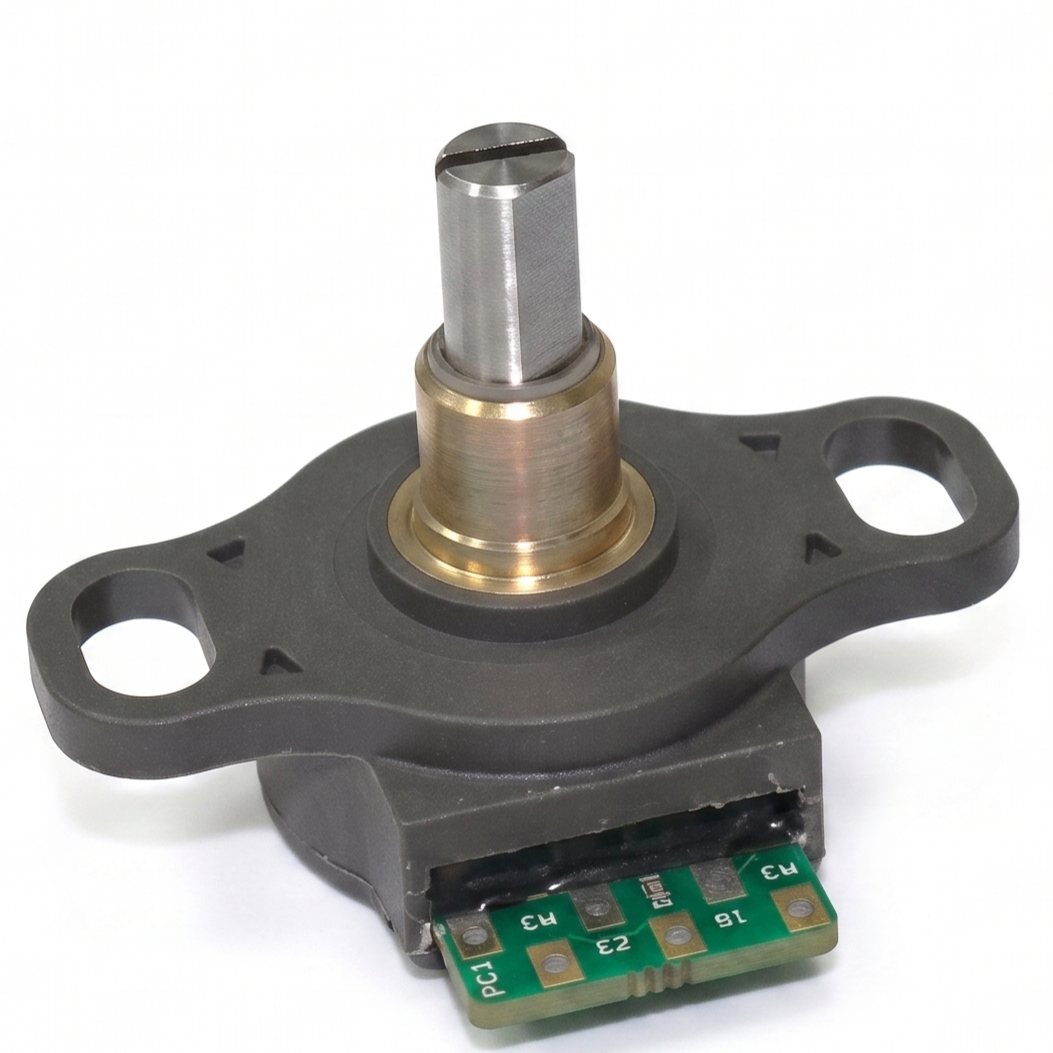

The P_27E (032) Series is a rugged dual-track conductive plastic potentiometer designed for accurate position feedback and control applications. Its conductive plastic element and precious metal wipers provide smooth, noise-free output with exceptional durability.
Detailed electrical, mechanical and environmental parameters for the NP_27E Series.
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive Plastic |
| Resistance Value | 5kΩ + 5kΩ |
| Resistance Tolerance | ±20% |
| Independent Linearity | ±2% (IEC 393) |
| Electrical Angle | 270° ± 3° (2x) |
| Power Rating @ 70°C | 2 W |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Inter-POT Insulation Resistance | 20 MΩ @ 100 VDC |
| Wiper Protection Resistance | 500–1000 Ω |
| Mechanical Angle | 270° with Stopper |
| Shaft Play (Axial/Radial) | 0.2 mm |
| Operating Temperature | -40°C to +150°C |
| Protection Rating | IP65 |
| Terminals | PCB Gold-Plated Pads |
