Sealed for Reliability in Harsh Conditions

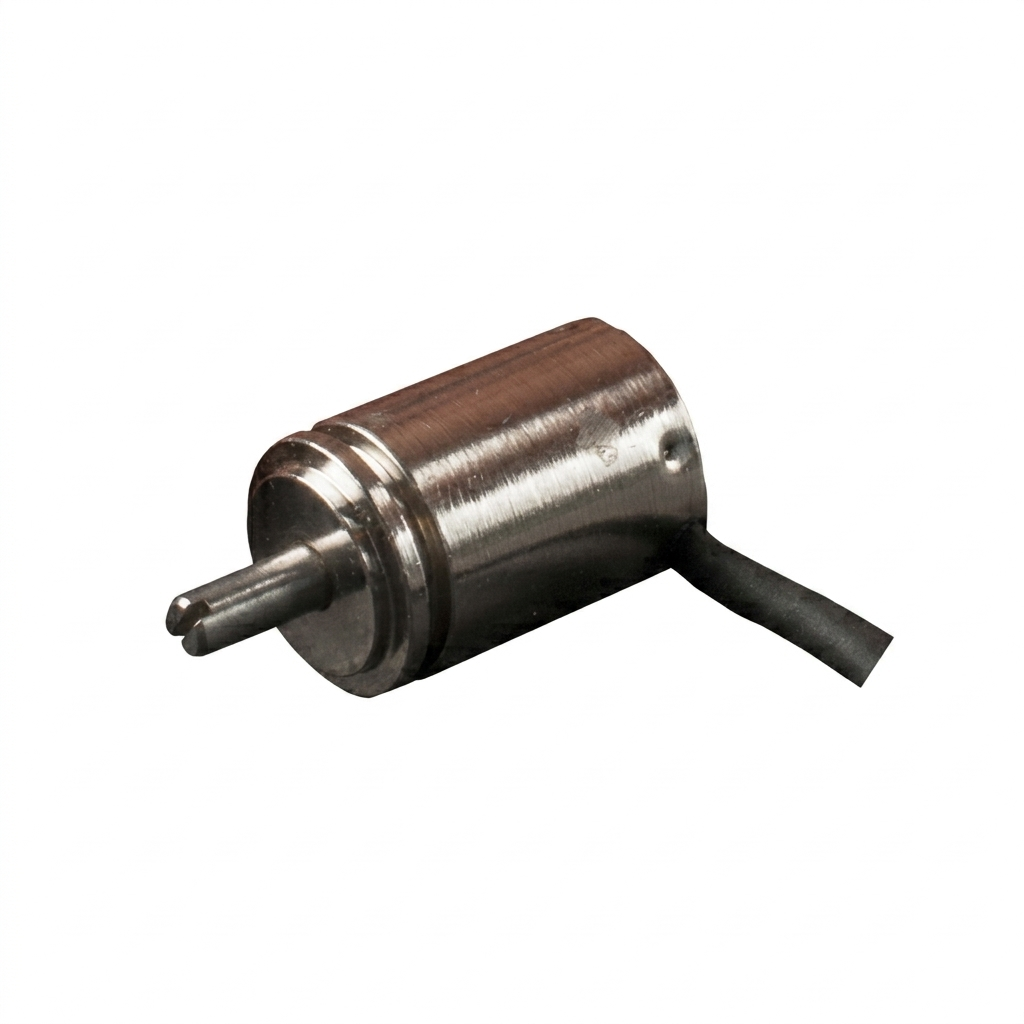

NPS12 is a sealed conductive plastic potentiometer designed for applications exposed to dust, moisture, and environmental stress. Epoxy sealing ensures IP65-level protection.
Detailed electrical, mechanical and environmental parameters for the NPS12.
| Parameter | Value / Rating |
|---|---|
| Shaft | Ø3 mm |
| Wire leads | (100 mm) |
| Sleeve protection | IP65 |
| Std. Resistance Tolerances | +/- 20% |
| Electrical Angle | 308° |
| Independent Linearity | +/- 3% |
| Resistance Value | 1k, 2k, 5k, 10k Other values upto 100K Ohms |
