Precision dual-track angle sensing with exceptional durability and reliability.

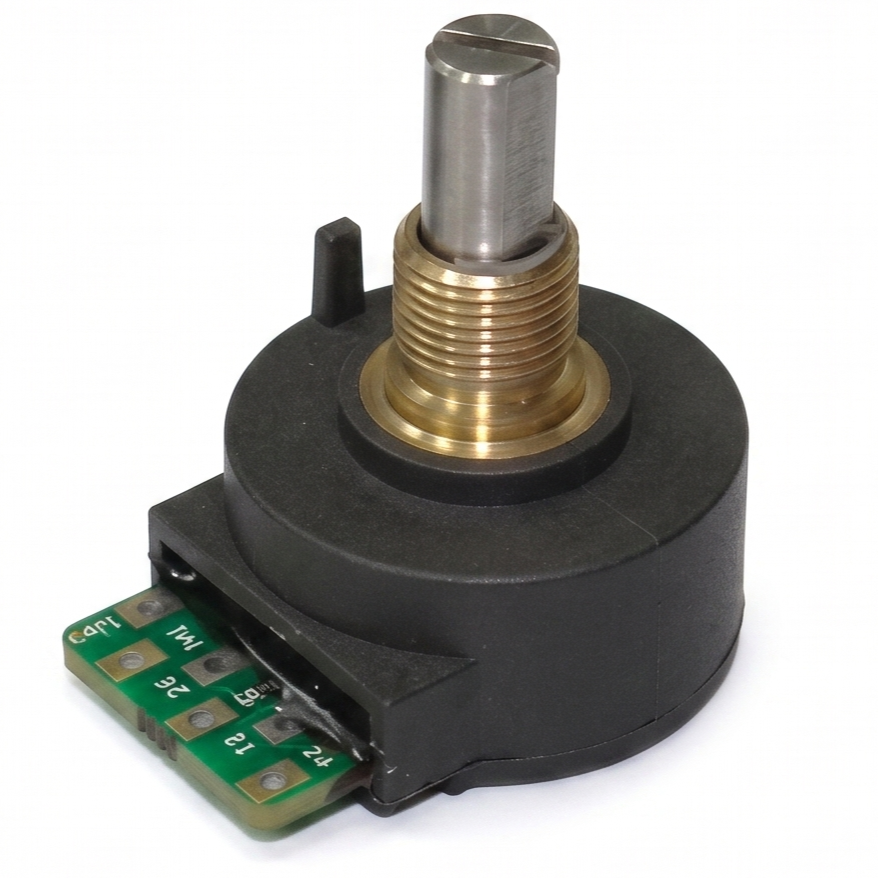

The P_27 (031) Series is a rugged dual-track conductive plastic potentiometer designed for precise position feedback and control applications. Its conductive plastic technology and precious metal wipers ensure smooth, noise-free performance with a long operational life.
Detailed electrical, mechanical and environmental parameters for the NP_27 Series.
| Parameter | Value / Rating |
|---|---|
| Resistance Value | 5kΩ + 5kΩ |
| Resistance Tolerance | ±20% |
| Independent Linearity | ±2% (IEC 393) |
| Electrical Angle | 270° ± 3° (2x) |
| Power Rating @ 70°C | 2 W |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Maximum Wiper Current | 1 mA Continuous / 10 mA for 10 sec |
| Mechanical Angle | 270° Stopper |
| Starting Torque | 10 Nmm |
| Axial / Radial Play | 0.2 mm |
| Operating Temperature | -40°C to +150°C |
| Protection Rating | IP65 |
