Engineered for continuous, medical and industrial high-accuracy angle tracking.

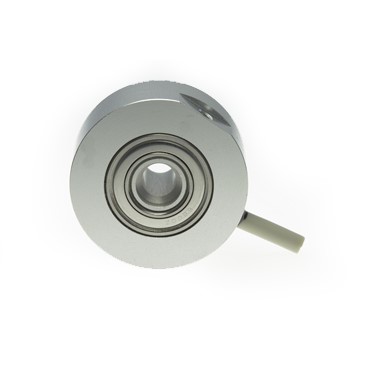

The PGL61 is a premium-grade hollow shaft potentiometer built for applications requiring extreme precision and stable long-term performance. Designed for direct mounting on rotating drive shafts, it enables highly accurate angle sensing in compact and demanding motion-control systems.
With a near-full 354° active electrical range and smooth 360° continuous mechanical rotation, the PGL61 ensures consistent, low-torque operation even in high-duty cycle environments. Its exceptional ±0.25% linearity makes it suitable for medical equipment, precision instrumentation, and advanced industrial automation.
Detailed electrical, mechanical and environmental parameters for the PGL61.
| Parameter | Value / Rating |
|---|---|
| Resistance Range | 10 kΩ (Standard) |
| Electrical Angle | 354° |
| Mechanical Angle | 360° continuous rotation |
| Linearity | ±0.25% |
| Rotational Life | 25,000,000 cycles |
| Shaft Style | Hollow bore |
