Continuous rotation, dual-gang precision feedback.

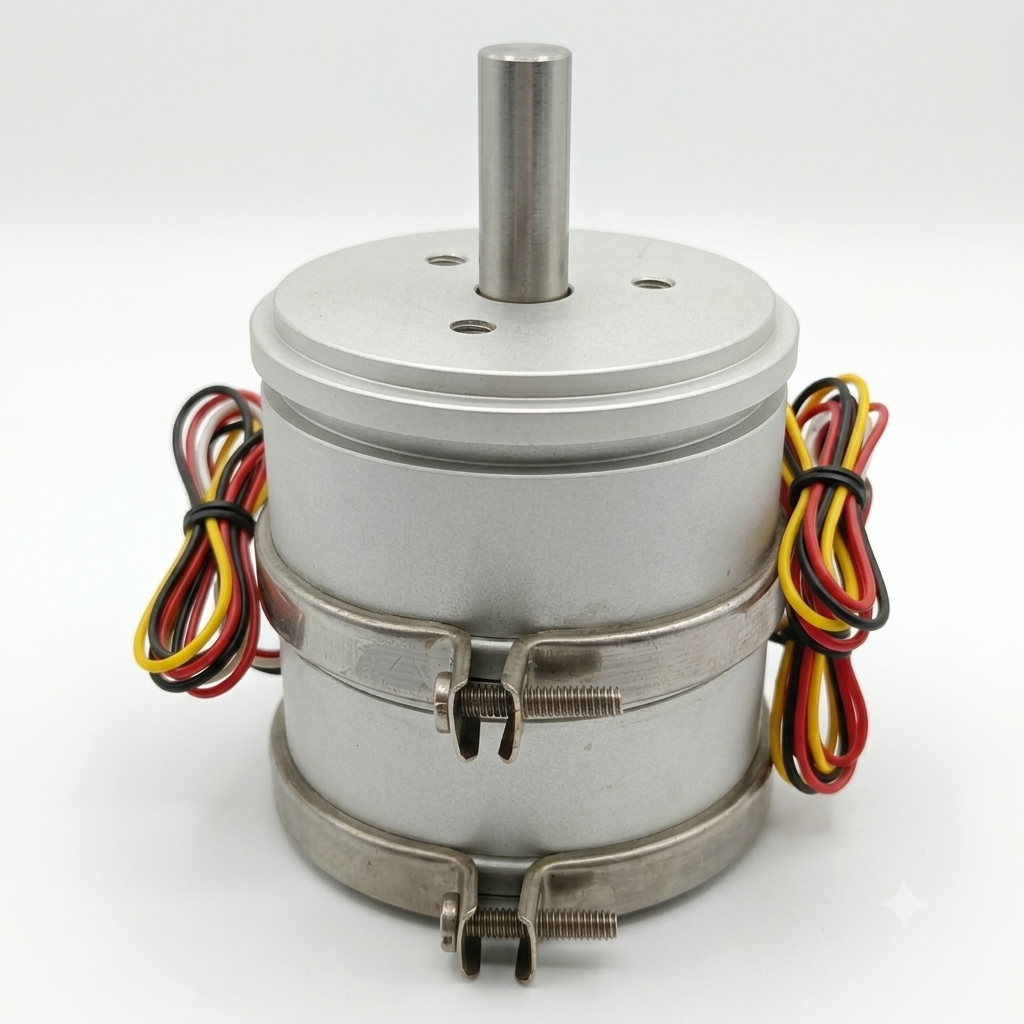

The 40CP-GANG (116) is a dual-gang conductive plastic servo potentiometer designed for accurate position feedback and synchronized multi-channel control. Its robust construction and high tracking accuracy make it ideal for demanding industrial and servo applications.
Detailed electrical, mechanical and environmental parameters for the Servo Potentiometer 40CP-GANG.
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive Plastic |
| Resistance Value | 1kΩ + 1kΩ |
| Resistance Tolerance | ±10% |
| Independent Linearity | <0.5% (IEC 393) |
| Electrical Angle | 350° ± 3° |
| Tracking Error | <2% of Applied Voltage |
| Power Rating @ 70°C | 2 W |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Dielectric Strength | 500 VAC @ 50 Hz |
| Mechanical Angle | 360° Continuous |
| Axial / Radial Play | 0.1 mm |
| Operating Temperature | -40°C to +105°C |
| Terminals | Gold-Plated Brass Stud Type with AWG20 Wire Leads |
