High-resolution precision built to last.

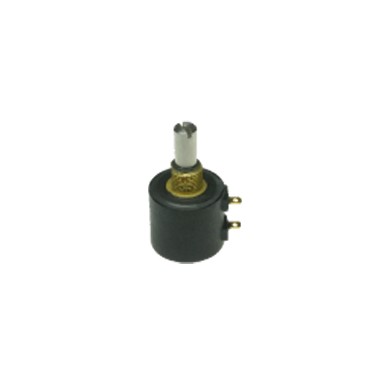

The POD1810 is a premium multi-turn wire-wound potentiometer designed for precision control and feedback applications requiring accurate rotational positioning. Its robust stainless steel shaft construction and 10-turn design provide exceptional durability, smooth operation, and reliable performance in demanding industrial environments.
With a full 3600° electrical and mechanical rotation, the POD1810 delivers fine adjustment capability and outstanding resolution. Multiple shaft length options make it easy to integrate into a wide range of panel control, instrumentation, and automation systems.
Electrical, mechanical and environmental ratings for the POD1810.
| Parameter | Value / Rating |
|---|---|
| Technology | Wire-Wound |
| Resistance Range | 100 Ω – 20 kΩ |
| Electrical Angle | 3600° |
| Mechanical Angle | 3600° |
| Independent Linearity | ±0.25% |
| Rotational Life | 1,000,000 Cycles |
| Shaft Material | Stainless Steel |
| Number of Turns | 10 Turns |
