Compact square design, reliable long-life angular feedback.

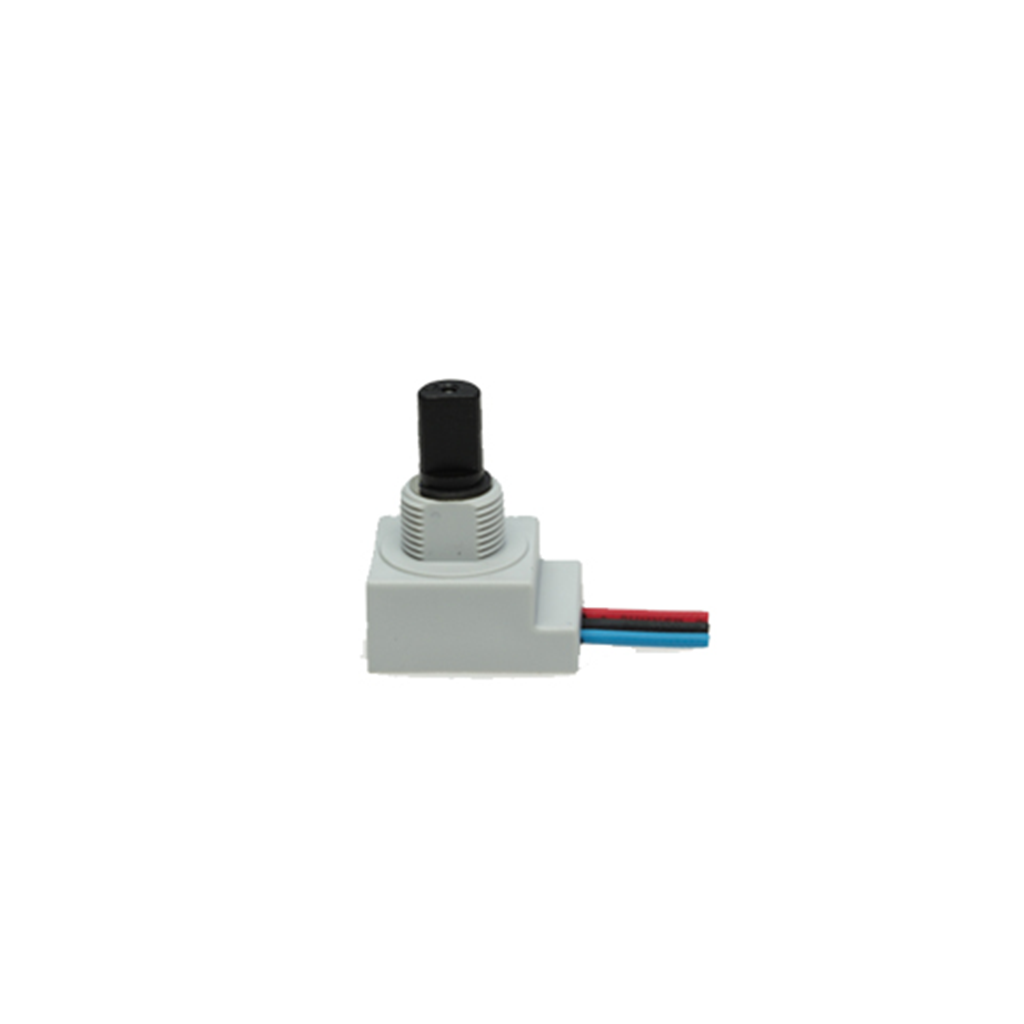

The POL 16 is a single-turn square conductive plastic potentiometer designed for compact panel layouts requiring reliable and accurate position feedback. Its conductive plastic track ensures smooth, low-noise operation with consistent electrical performance.
Built with a rugged square housing, it is optimized for space-constrained installations while maintaining durability and precision. The IP54-rated enclosure provides protection against dust and light moisture exposure, making it suitable for industrial control applications.
Electrical, mechanical and environmental ratings for the POL 16.
| Parameter | Value / Rating |
|---|---|
| Resistance Value | 10 kΩ |
| Linearity | ±2% |
| Electrical Angle | 310° nominal |
| Mechanical Angle | 320° |
| Rotational Life | 1,000,000 cycles |
| Protection Class | IP54 |
| Resistance Element | Conductive Plastic |
| Build Type | Rugged Industrial Grade |
