Decade-turn precision engineered for ultra-fine adjustment and heavy industrial runtime.

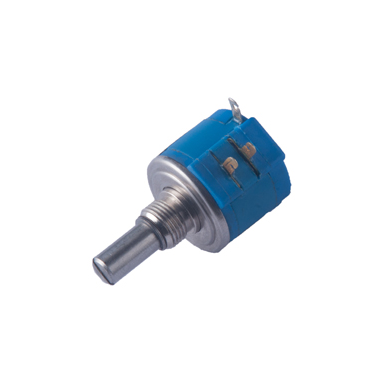

The NHP22 (023) is a rugged industrial-grade 10-turn wire-wound potentiometer designed for maximum setting accuracy and stable positional feedback. It features a Capri Blue plastic housing, stainless steel shaft, and gold-plated brass terminals for reliable long-term electrical performance.
It provides a full 3600° rotation range, enabling ultra-fine adjustment and high-resolution control in precision systems.
Electrical, mechanical and environmental ratings for the NHP22 (023).
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Wire Wound |
| Total Resistance | 1kΩ, 2kΩ, 5kΩ, 10kΩ |
| Resistance Tolerance | ±10% |
| Independent Linearity | ±0.25% (IEC 60393) |
| Effective Electrical Angle | 3600° (+10° / -0°) |
| Power Rating @ 70°C | 2 Watts |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Mechanical Rotation | 3600° with end stop |
| Operating Temperature | -40°C to +125°C |
| Stopper Strength | 45 N·cm (63.725 oz·in) |
| Vibration / Shock | 15 G / 50 G |
| Mounting Collar / Shaft | Ø10.32 mm bushing / Ø6.35 mm shaft |
