Dual-gang wirewound precision for robust panel and feedback applications.

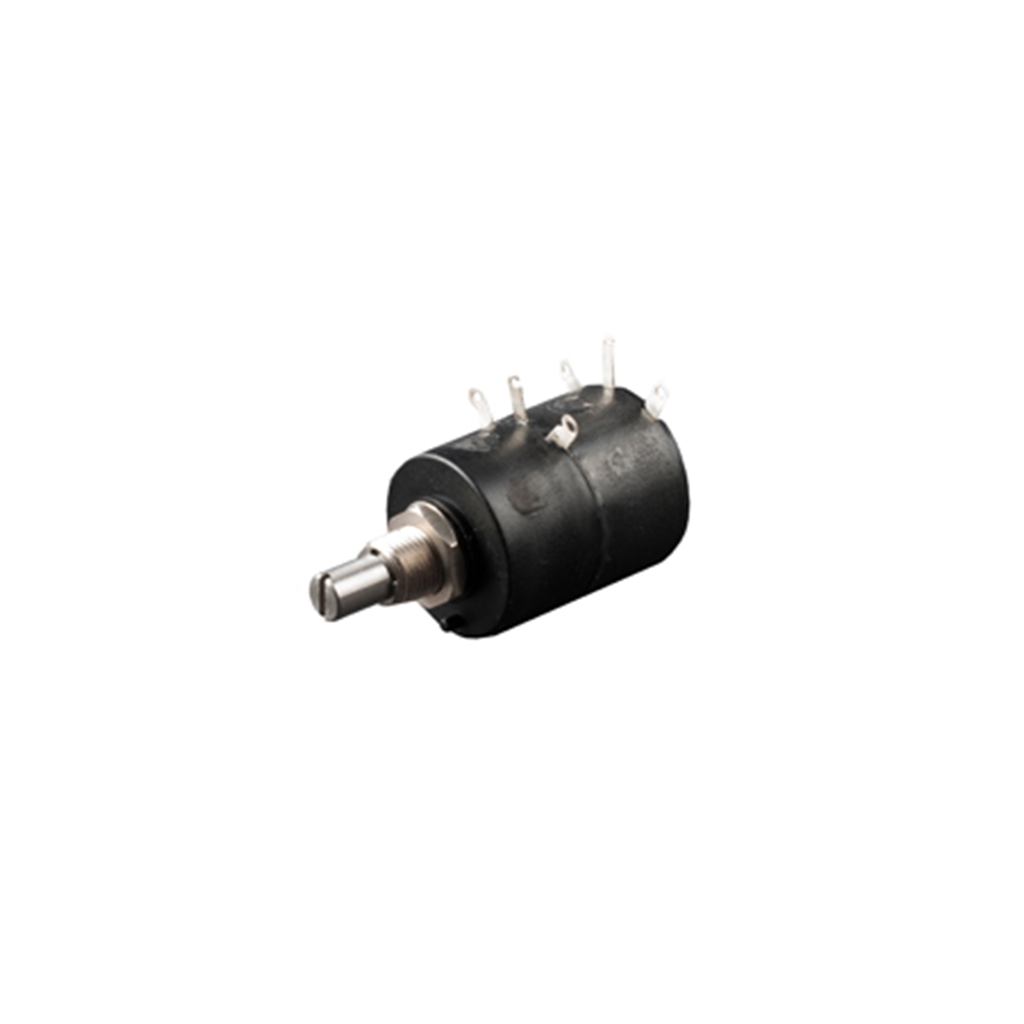

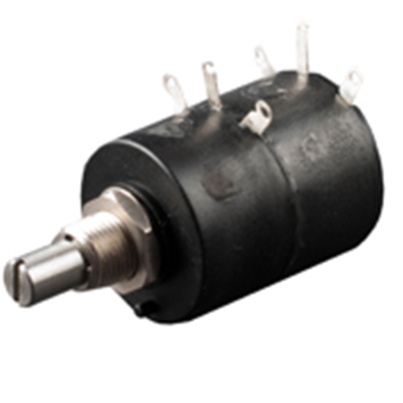

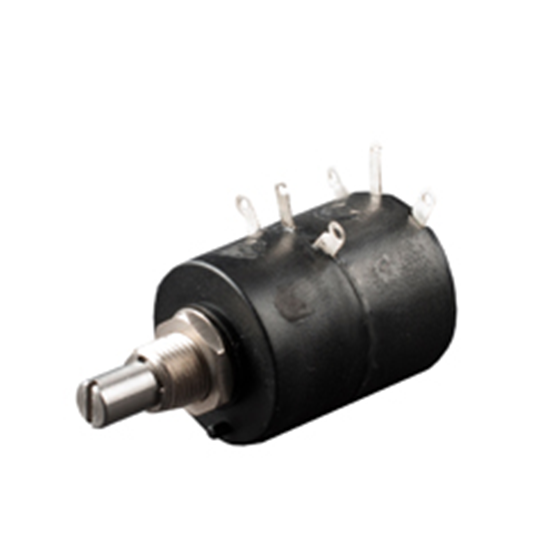

The P25DG (935) Dual Gang Wire Wound Potentiometer is an industrial-grade single-turn potentiometer featuring a dual-gang wirewound resistance element. It delivers stable and reliable performance with precise tracking for feedback and control applications.
Built with a stainless steel shaft, nickel-plated brass bushing, and an engineering plastic housing with protective potting, it ensures durability in demanding environments. The unit is supplied with pre-wired color-coded leads for easy integration.
Electrical, mechanical and environmental ratings for the P25DG.
| Parameter | Value / Rating |
|---|---|
| Resistance Value | 100Ω + 100Ω |
| Resistance Tolerance | ±10% |
| Independent Linearity | ±1% (IEC 393) |
| Electrical Angle | 270° ± 5° |
| Temperature Coefficient | ±50 ppm/°C |
| Power Rating @ 70°C | 1 W |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Mechanical Angle | 285° ± 5° with stop |
| Operating Temperature | -40°C to +105°C |
| Bearing Type | Sleeve Bearing |
| Terminals | Silver-Plated |
| Wiring | 22AWG (7/30) color-coded leads (125 ±5 mm) |
