Direct-drive hollow shaft sensing with omnidirectional mounting freedom.

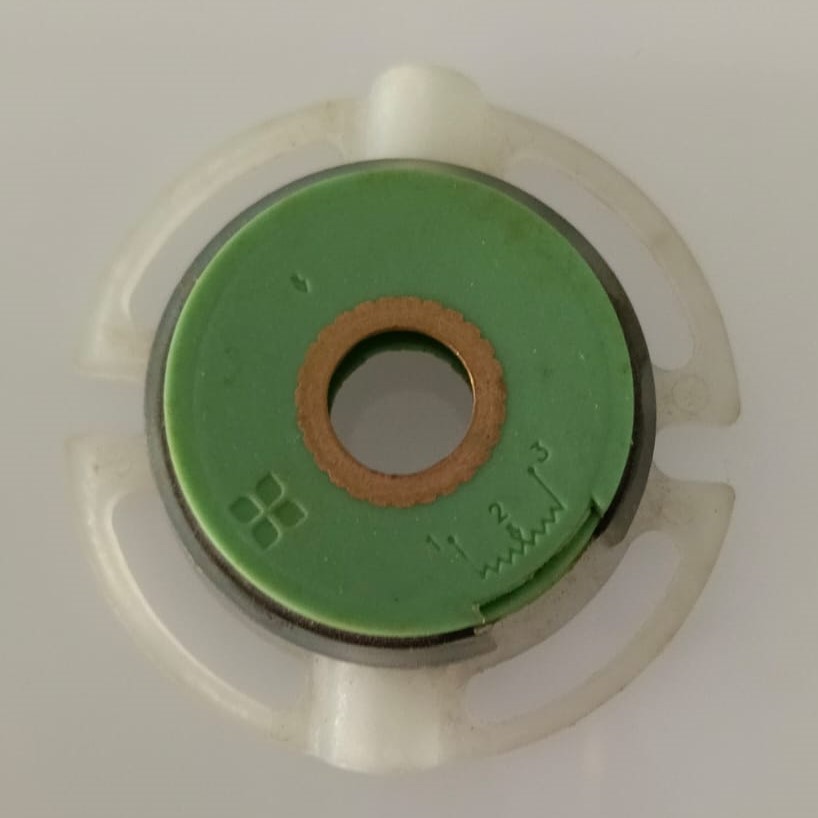

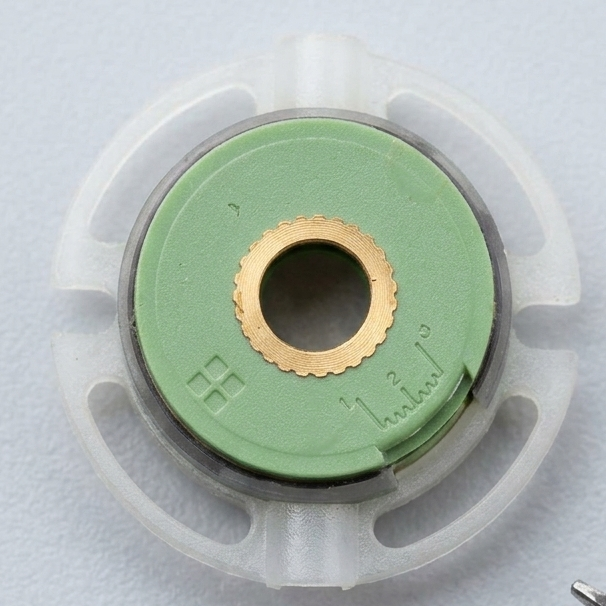

The NP24HS (803) is a conductive plastic hollow shaft potentiometer designed for direct mounting onto rotating shafts without external couplings. Its integrated Omnimount bracket provides flexible installation options, while the precious metal wiper system ensures smooth, noise-free feedback performance.
Built with a compact engineering plastic housing and a 6 mm hollow shaft, it delivers reliable operation and long service life in demanding industrial applications.
Electrical, mechanical and environmental ratings for the NP24HS Series.
| Parameter | Value / Rating |
|---|---|
| Resistance Element | Conductive Plastic |
| Resistance Values | 1 kΩ, 2 kΩ, 5 kΩ, 10 kΩ |
| Resistance Tolerance | ±10% |
| Independent Linearity | ±0.5% (IEC 393) |
| Electrical Angle | 180° ±5° |
| TCR | +400 ppm/°C |
| Power Rating @ 70°C | 0.5 W |
| Insulation Resistance | 500 MΩ @ 500 VDC |
| Maximum Wiper Current | 1 mA Continuous |
| Short-Time Wiper Current | 10 mA Max (10 sec) |
| Mechanical Angle | 360° Continuous |
| Bearing Type | Sleeve Bearing |
| Hollow Shaft Diameter | Ø6 mm (+0.1 / -0.0) |
| Operating Temperature | -40°C to +105°C |
| Housing Material | Engineering Plastic |
| Wiring | Teflon Leads (Black, White, Red), 410 ±10 mm |
| Bushing Material | Brass |
